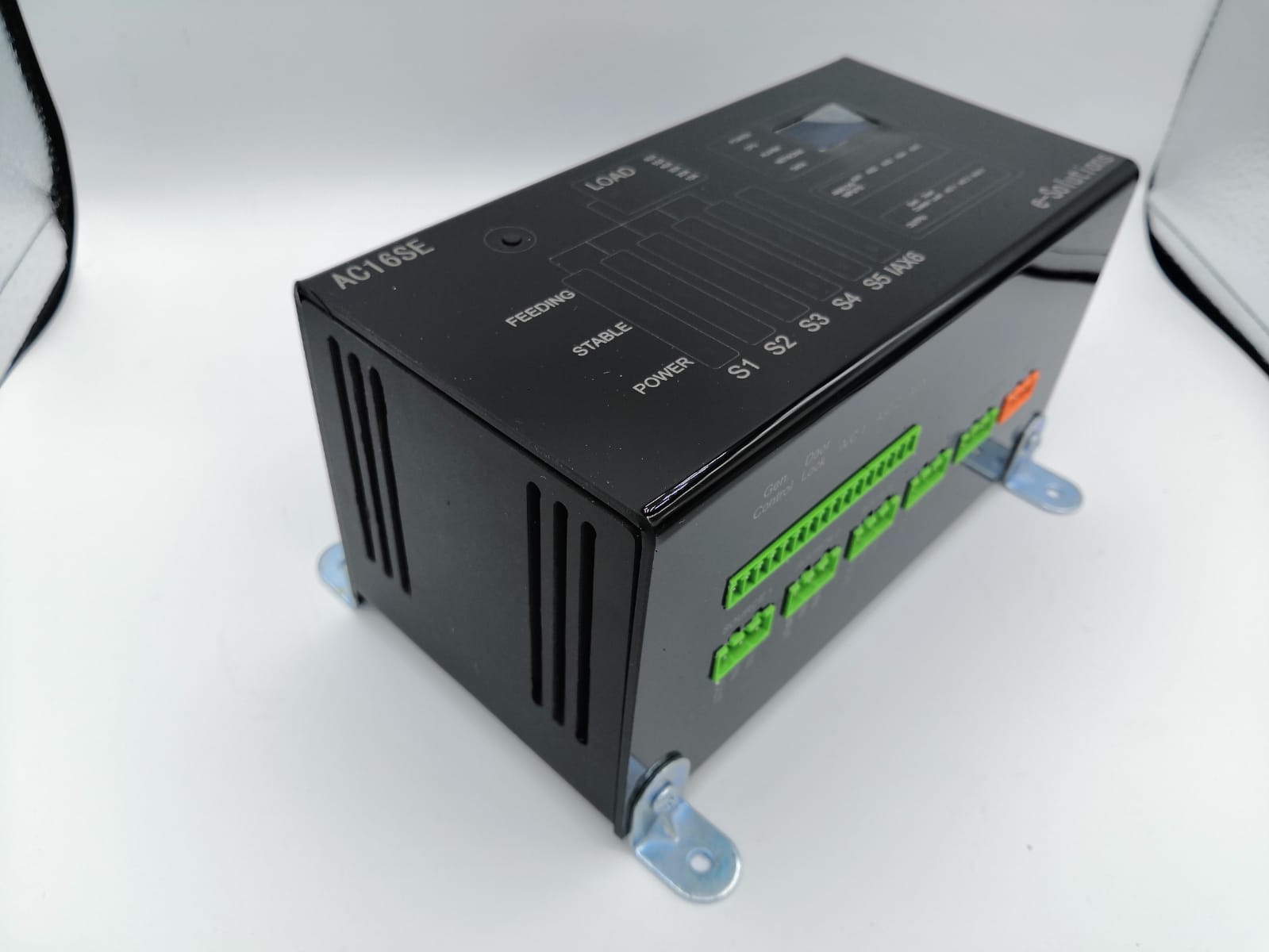

AUTOMATIC TRANSFER SYSTEM CONTROLLER

   Specifications:

• Model: AC16SE.
• Design Date: 2022.
• Main Processor: Dual-core system with two Harvard Architecture Xtensa LX6 CPUs 240MHz.
• OS: RTOS.
• Connection type: All removable connectors.

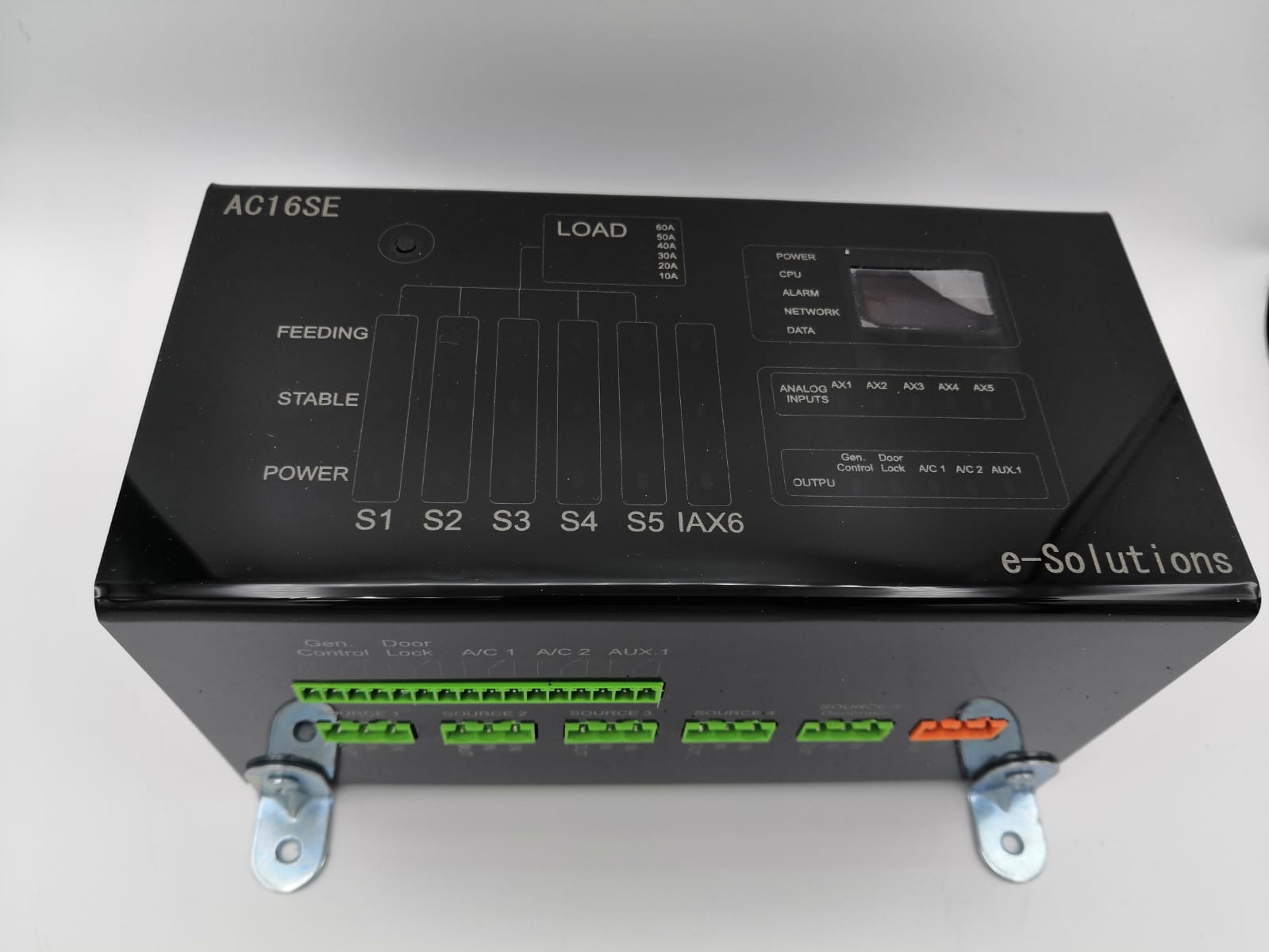

• Indicator type: LEDs (total 40 LED include 3 for each source,1 CPU,1 Ethernet,10 IO, 6 load level, etc.
• Display type: Blue 0.96" OLED Display.

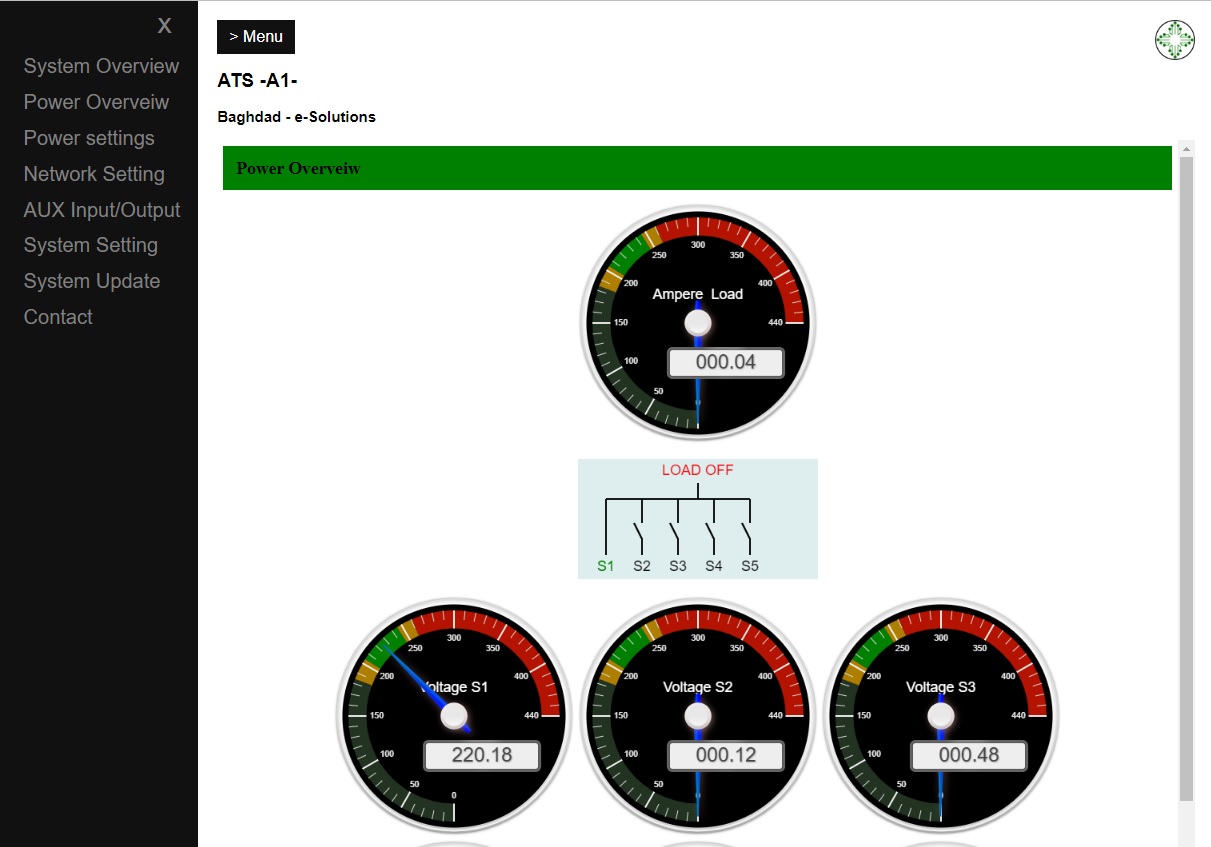

• ATS: suppot smart transfere based on priority, stability, voltage (can be set remotely from web).
• Over/Under Voltage Protection: 180-255VAC (can be set remotely from web).

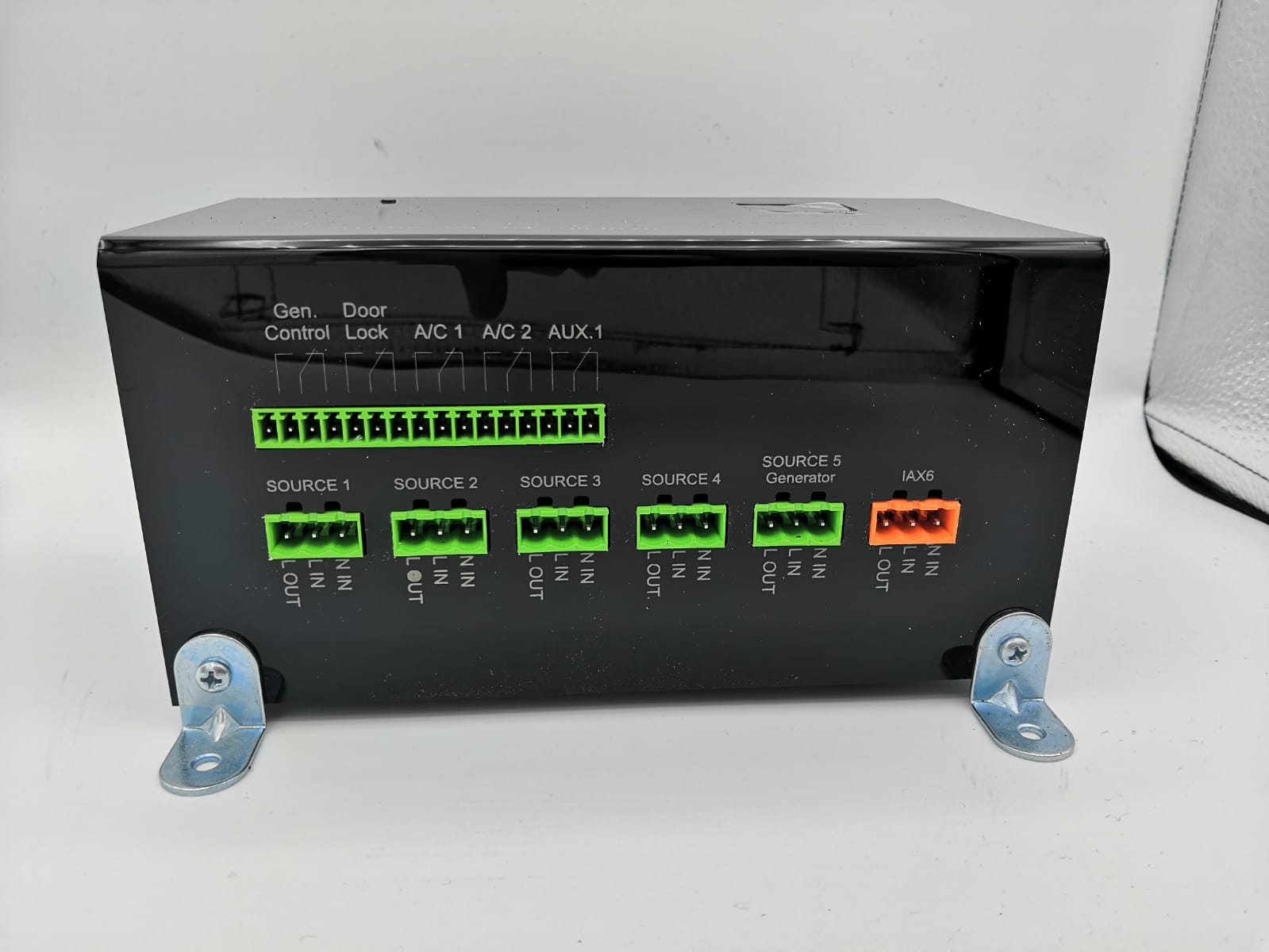

• Maximum input Voltage for AC Source: 500VAC (Up to 5 sources).
• Maximum input Voltage for IAX6 Source: 200VDC (Isolated Analog Aux. for site battery voltage sensor).
• Maximum input Voltage for AX1-AX5: 100VDC (Non Isolated Analog Aux.).
• Ourput 5 relay: 3A (Suppot NO.NC) to control (Ganarator, door, A.C1, A.C2, AUX).
• Stability Delay & Transfer delay: 1-99 sec. (can be set remotely from web).
• Maximum output current for internal relay: 3A
• Load current monitoring: CT60A.
• Generator Monitor and control (Auto run Generator besed on Temperature or DC Voltage or both).
• Site door sensor: Megnatic switch (XAI-2).
• SNMP: Support PRTG librarry file (Monitor Up time and down time for all sources, temperature, generator status, Analog in, Output relays, Supply voltage etc. ).

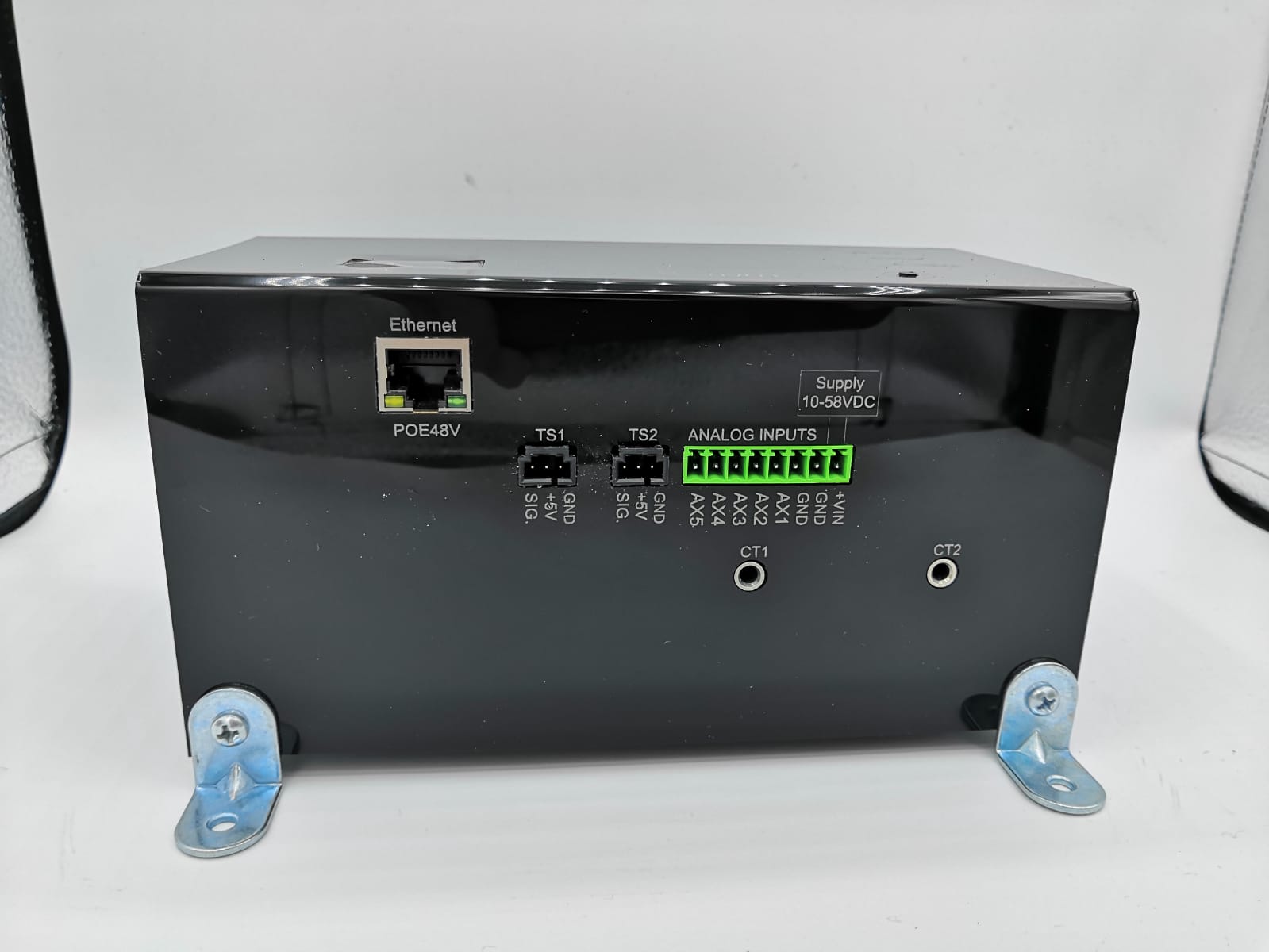

• Power Consumption: Input1 10-58VDC 6W, Input2 HR861153C Ethernet-POE interface 50V.
• Ethernet: Full Doublex Fast Ethernet.
• Supported protocol: HTTP, TCP/IP V4, SNMP, NTP, ICMP, DHCP.
• Default IP Address: 192.168.1.50.
• Temperature Sensors: 2 Sensors 0-100C.
• Weight: 650g.
• Size: 170*90*100mm.
• Guaranteed: 1 Year.
